This PMA series dimmable led power supply has a dimmable range of 0.1-277vac universal output, built-in active PFC function, power factor >0.95. It complies with global safety lighting regulations and is mainly sold to North America.
Brand:
DEMIItem no.:
PMA-H24288JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
288WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

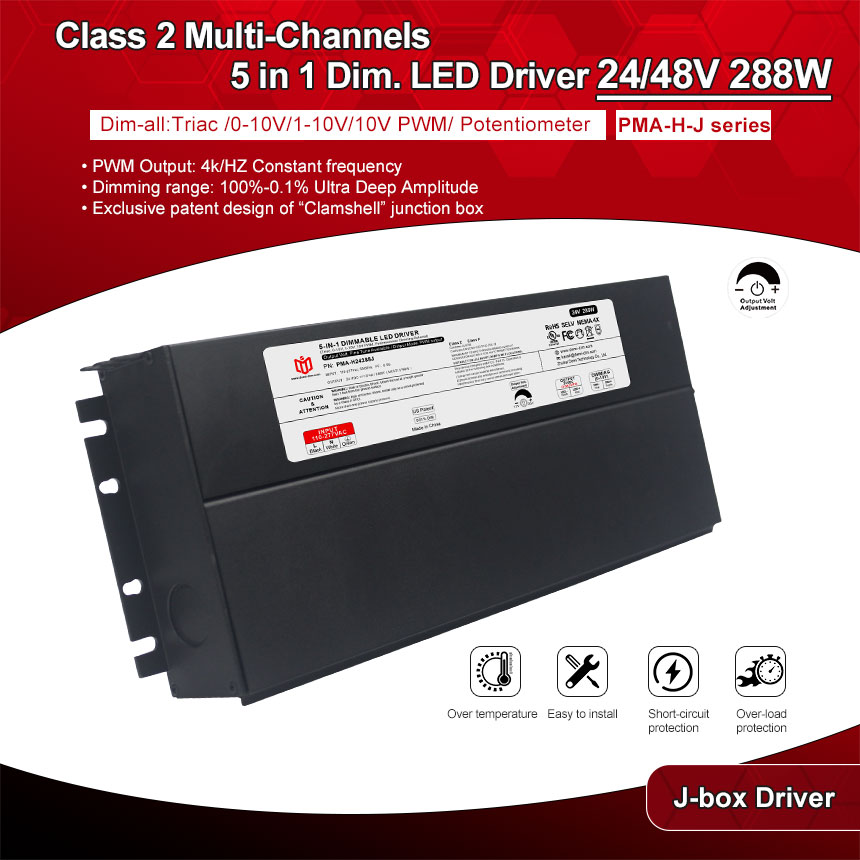

pwm output triac & 0 10V dimmable 24v/48v 288W led power supply strip light driver
PWM output mode triac & 0 10v dimmable led driver constant voltage working mode, ultra-low load requirements, able to work perfectly under 10-100% load, almost compatible with popular front and rear edge thyristor dimmers and systems, 0-10V dimmable on the market Optical devices and systems. Able to work with BESTTEN dimmer is very compatible and achieves smooth flicker-free dimming.
| Model Number | PMA-H24288J | PMA-H48288J |
| Output Type | ||
| Reted Power | 288W(3CH*96W) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 3CH*4A | 3CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.97A | |
| Inrush Current(Typ.) | 35A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

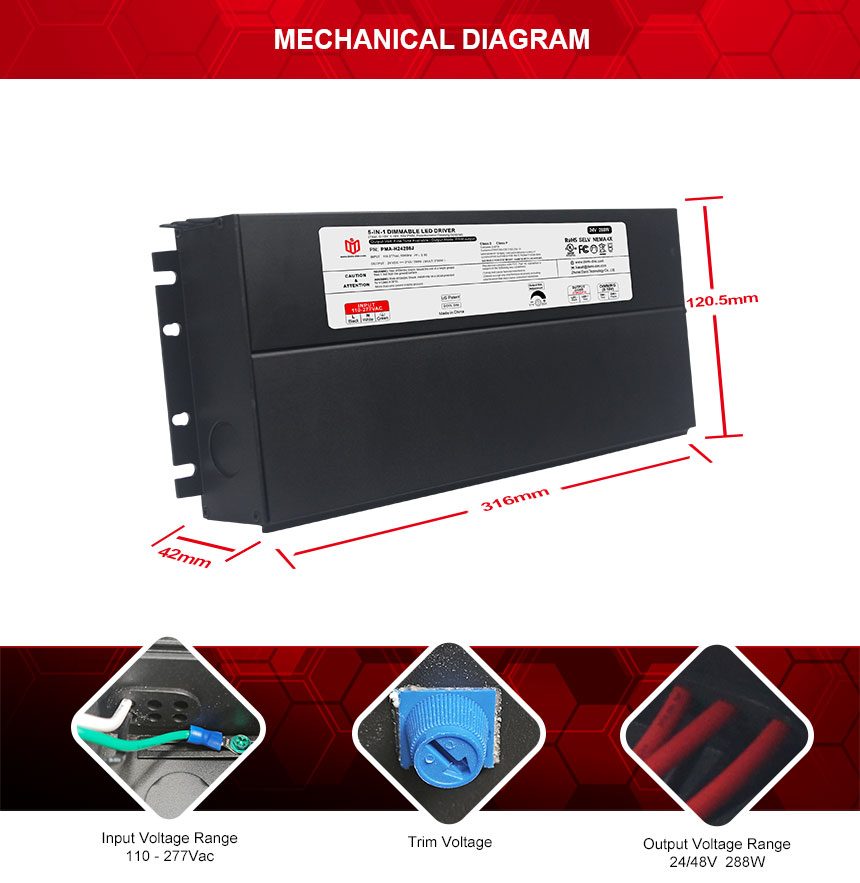

| Dimension | 316x120.5x42mm (L*W*H) | |
| Packing | - | |
|

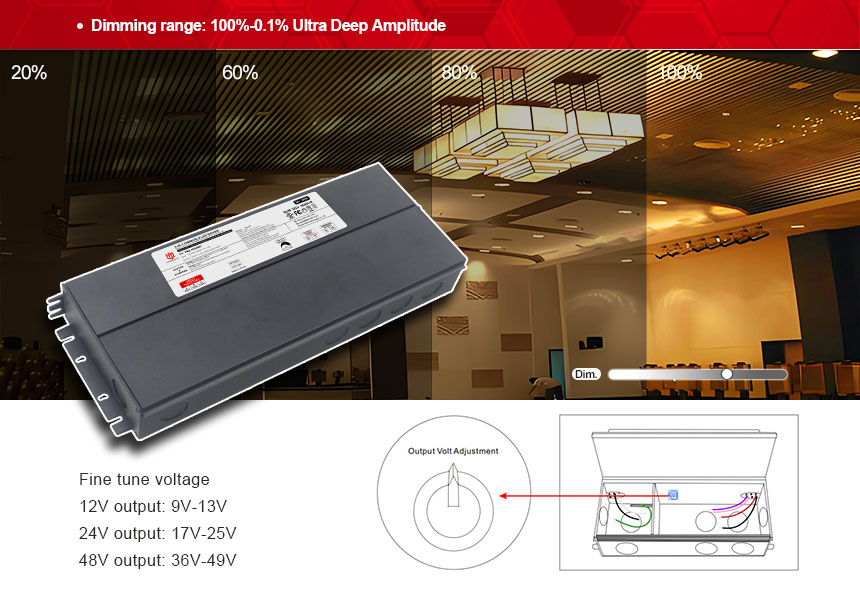

•Dimming range: 100%-0.1% Ultra Deep Amplitude •Build in active PFC, typical power factor>0.95 |
•Dim-all: Triac/0-10V/1-10V/10VPWM/Potentiometer. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|
This 288W triac & 0 10v dimmable led driver has three output channels that can provide stable voltage for multiple lamps. This led driver has short circuit/over temperature/overload protection function, which can provide stable and safe protection for the dimmable system. Widely used in indoor and outdoor lighting, such as commercial and residential lighting
| PMA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
288W (MULTI 96W * 3) |
AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac MLV wiring diagram

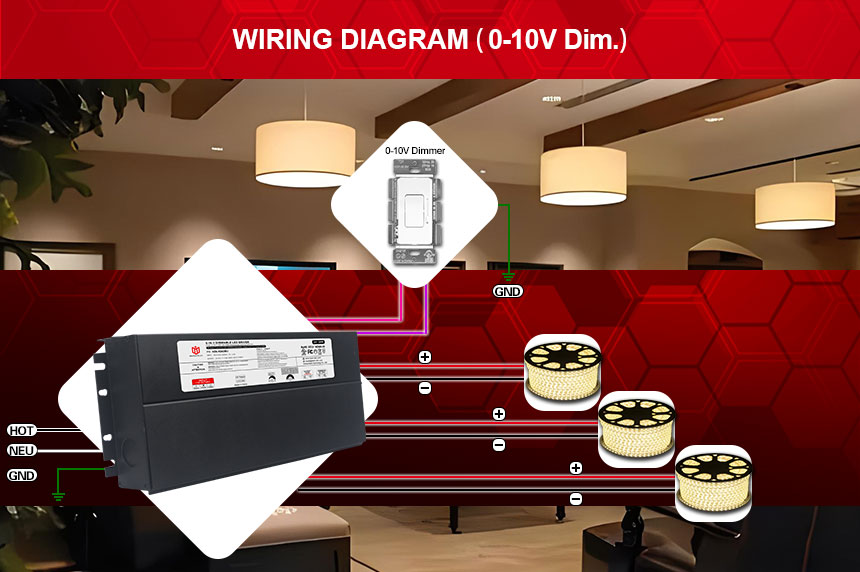

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
