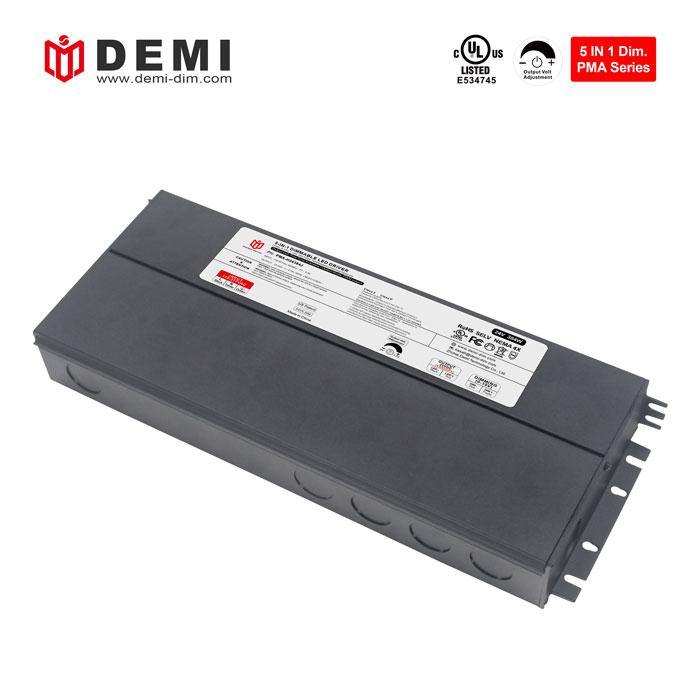

PMA Class 2 series triac & 0 10v dimmable led driver 384W has ultra-low load requirements, can work perfectly under 10-100% load, the dimming range is 0.1-100% ultra-deep amplitude dimming, the dimming effect is the same as that of inventronics led driver Just as good
Brand:
DEMIItem no.:
PMA-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 yearsUL certification 24V/48V 384W triac & 0 10v dimmable led light driver Junction Box

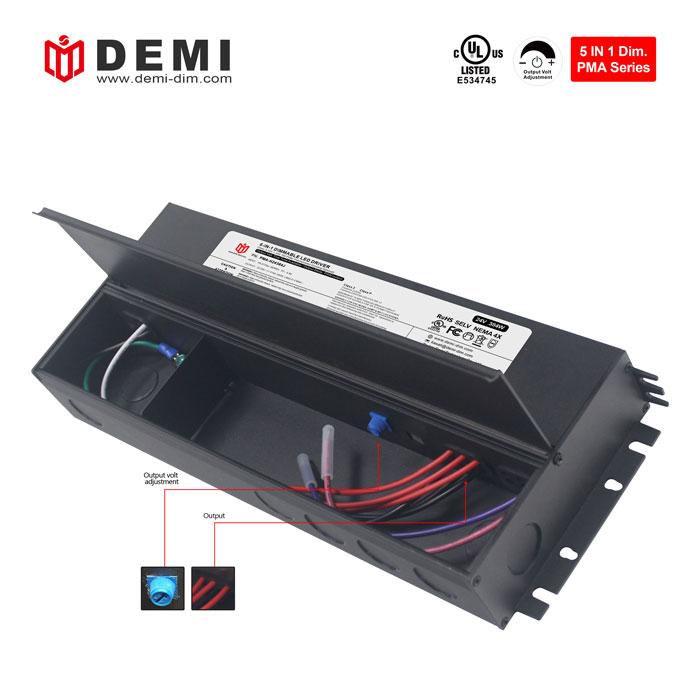

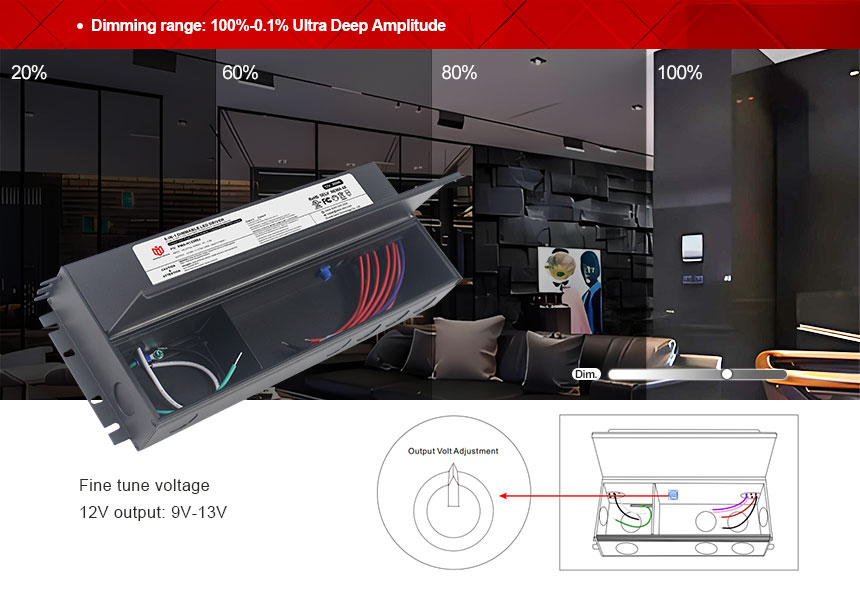

384W 5 in 1 dimmable led driver 110-277vac universal input voltage function, constant voltage output mode. Built-in fine-tuning voltage function knob, complies with global safety lighting regulations, 5-year warranty
Model Number | PMA-H24384J | PMA-H48384J |
Output Type | ||
Reted Power | 384W(4CH*96W) | |
Reted Voltage | 24V | 48V |
Reted Current | 4CH*4A | 4CH*2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 92%@120VAC 93%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 3.8A | |
Inrush Current(Typ.) | 38A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

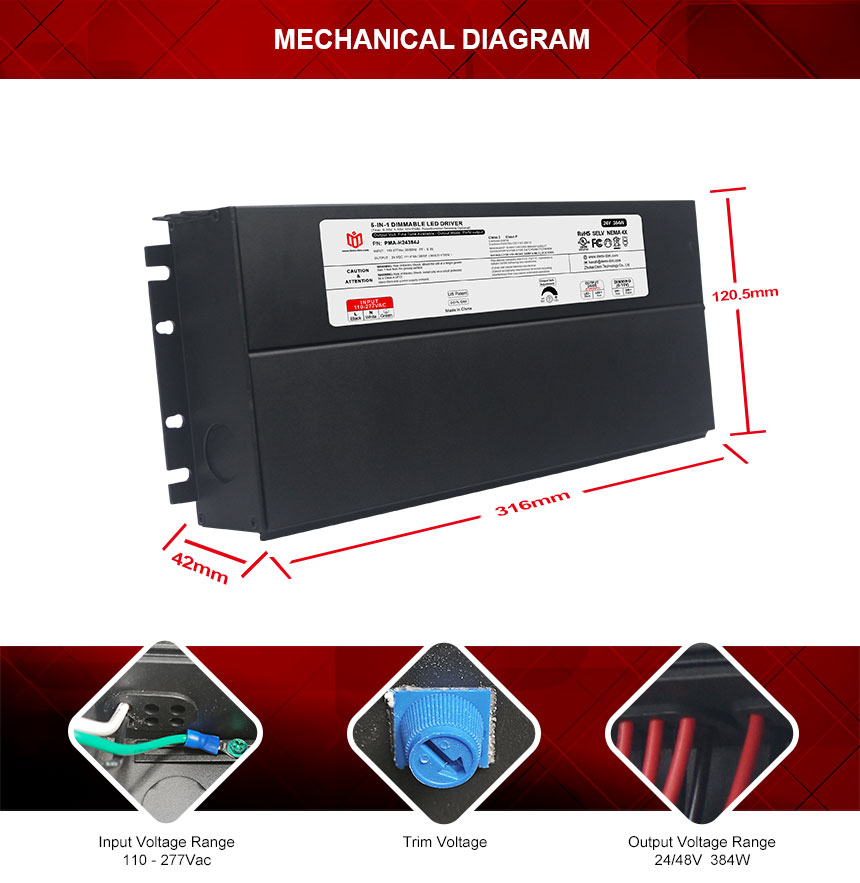

Dimension | 316x120.5x42mm (L*W*H) | |
Packing | - |

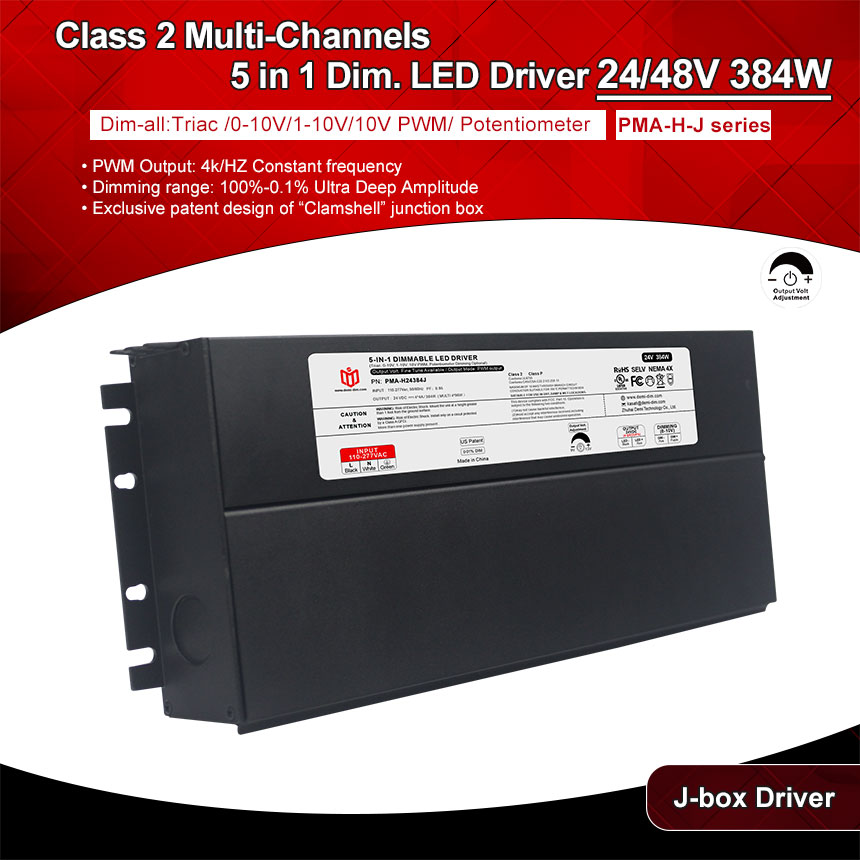

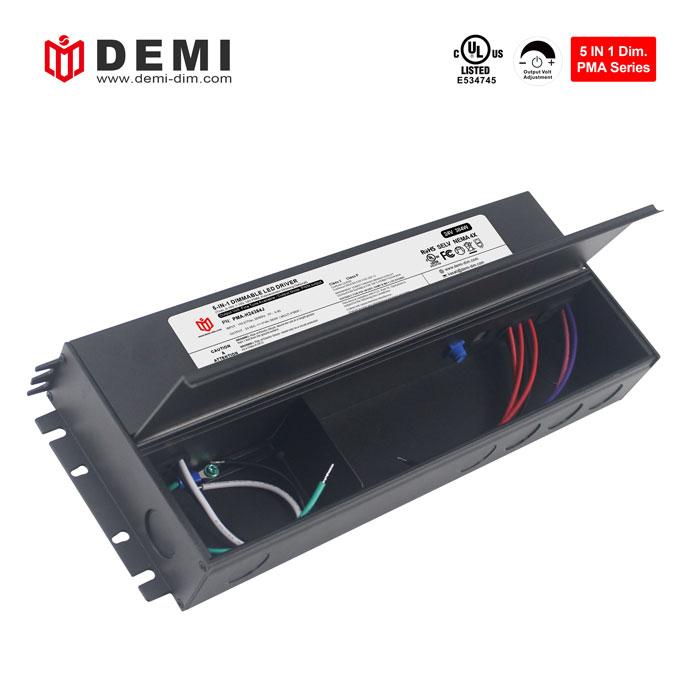

•Exclusive patent design of “Clamshell” junction box •Super low loading request, works perfect at 10-100% load |
•PWM Output: 4k/HZ Constant frequency •Short-circuit, over-temperature, over-load protection
|
Class 2 5 in 1 dimmable led power supply Aluminum shell design, passed NEMA 4X, good heat dissipation performance. It is necessary to ensure that the LED driver can be installed in a space that can provide sufficient gout and avoid being close to other heat sources. When installing, please refer to the product manual and provided Installation guide to ensure correct wiring and installation requirements
PMA-H-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
384W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram

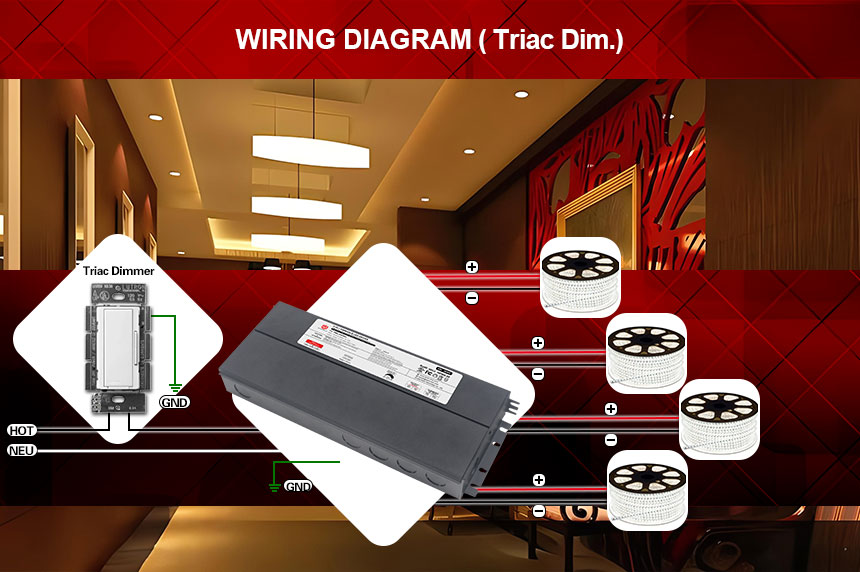

· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
