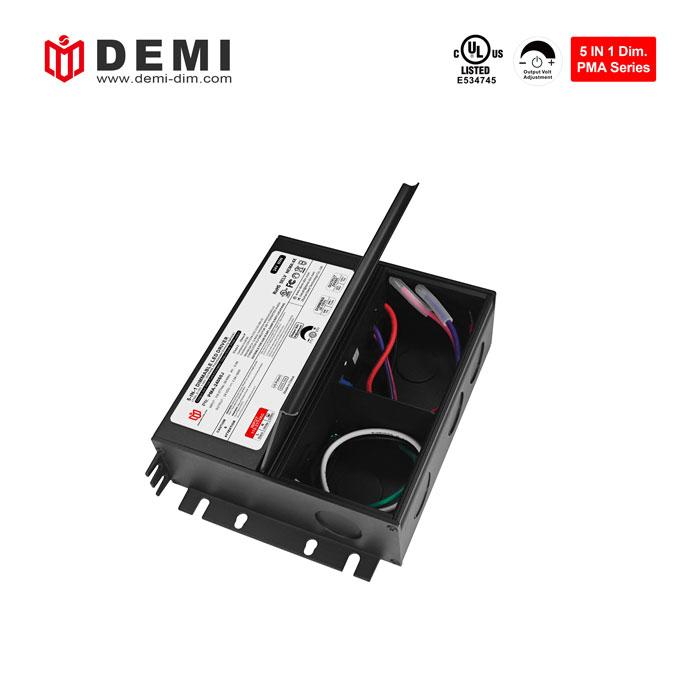

PWM output mode triac & 0 10v dimmable led driver constant voltage working mode, built-in fine-tuning voltage function knob, can also adjust a certain brightness when the customer does not connect the dimmer, strong compatibility, can be well compatible with most dimmers on the market. For example, Leviton dimmer
Brand:
DEMIItem no.:
PMA-24060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
UL Listed 60 watt 24v triac & 0 10v dimmable led driver manufacturers
This PMA series triac & 0 10v dimmable led power supply 60W 24V has a built-in fine-tuning voltage function knob, which can adjust a certain brightness even without connecting a dimmer. PWM output mode, built-in active PFC function Constant voltage working mode, with ultra-low load requirements, can work perfectly at 10-100% load
| Model Number | PMA-12060J | PMA-24060J | PMA-48060J |
| Output Type | |||
| Reted Power | 30W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 5A | 2.5A | 1.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.65A | ||
| Inrush Current(Typ.) | 20A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, Class 2 | ||
| Safety standards | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

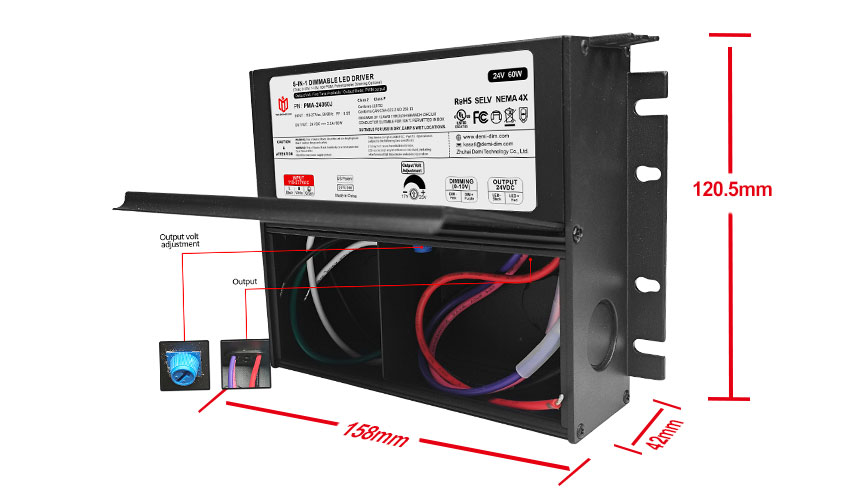

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

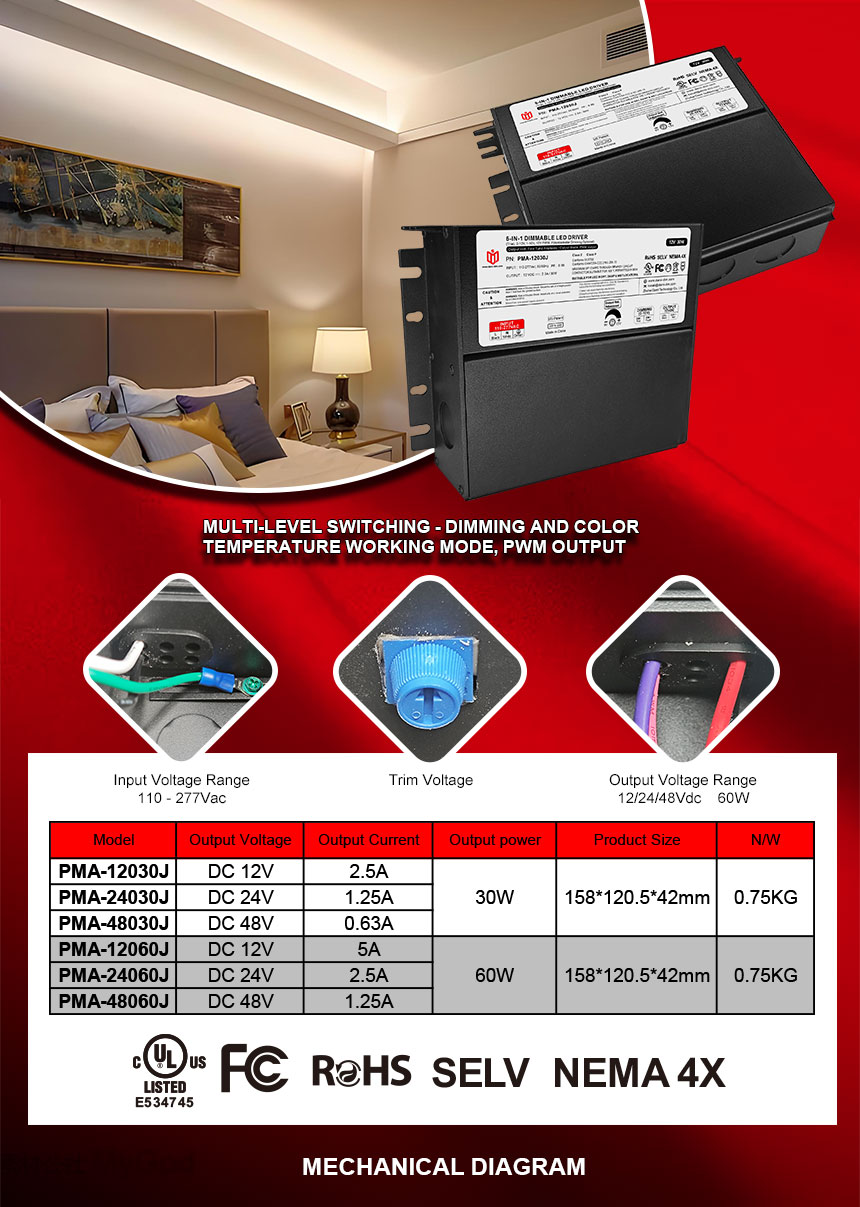

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range: 100%-0.1% Ultra Deep Amplitude |

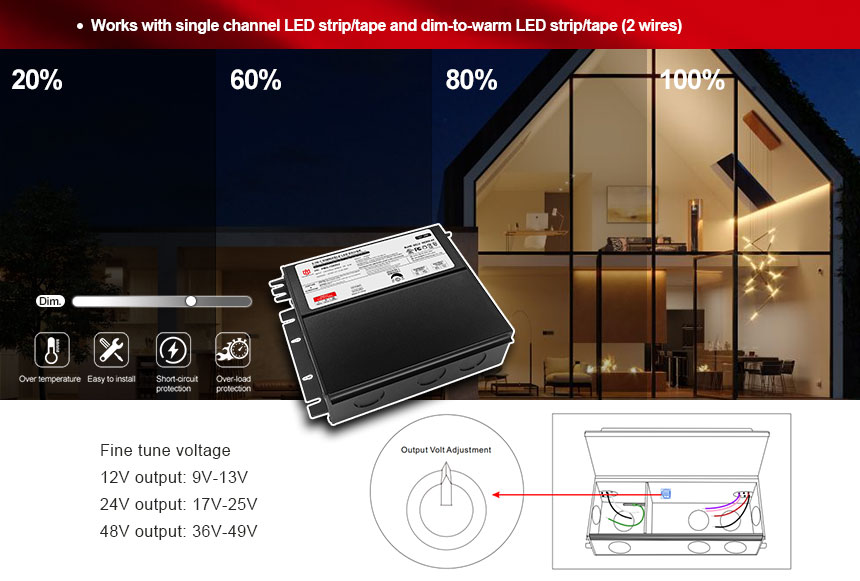

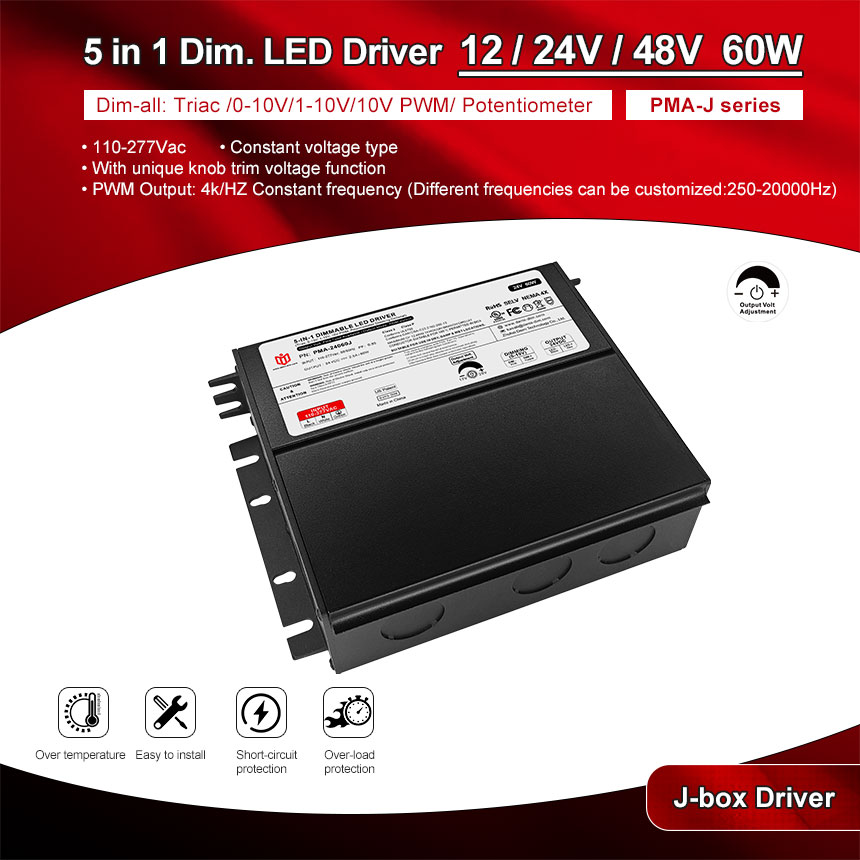

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |

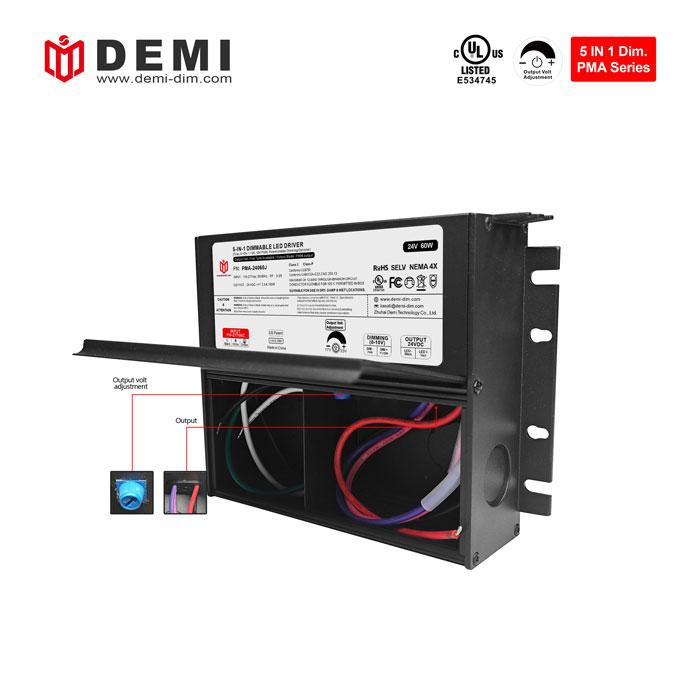

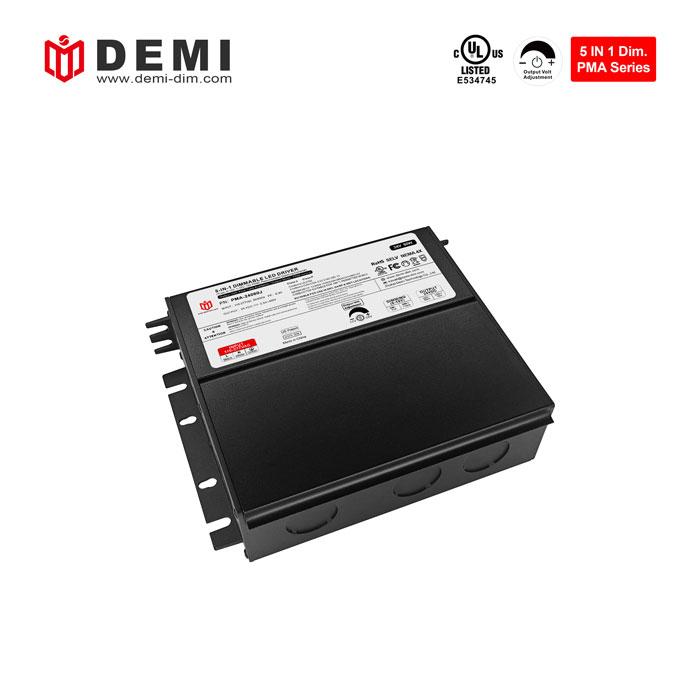

DM's new 5 in 1 dimmable LED driver 24v 60W is integrated with the junction box, with a compact body and convenient and quick installation. The shell material is made of aluminum shell, which has good heat dissipation performance. It is suitable for installation in places such as advertising light boxes and used in LED advertising lighting projects.
| PMA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac/MLV wiring diagram

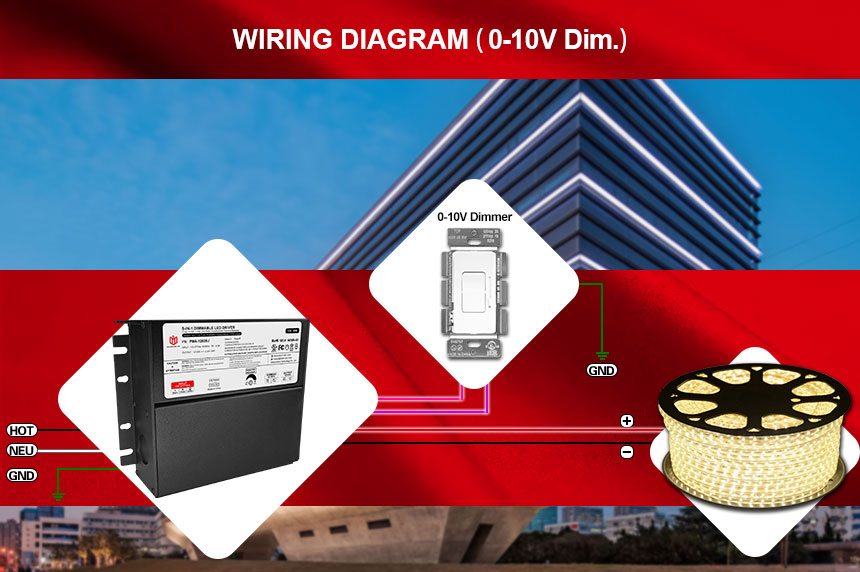

· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
